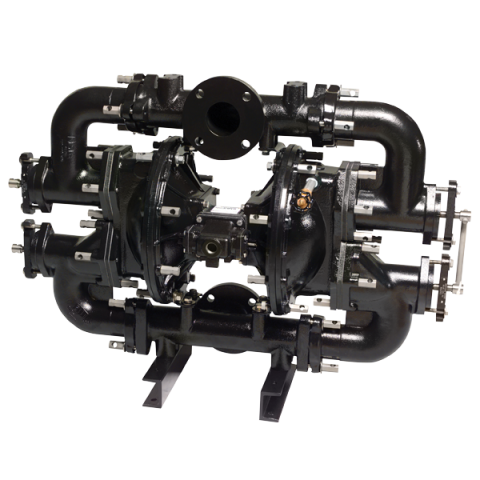

W15 Sandpiper AODD Wastewater Metallic Pump

Non-Clog Wastewater Pumps are fitted with swing check valves and easy access clean-outs. The pumps are designed specifically for slurry and solids-laden materials. Flap valves allow passage of suspended, pipe-size solids and stringy material. Constructed of cast iron and durable epoxy coating inside and out.

Specifications

Port Size
W15-3: 3″ 125# ASA Flange
W15-4: 4″ 125# ASA Flange
Capacity
0 to 260 gpm (988 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to 3″ (76 mm)
Heads Up To
125 psi or 289 ft. of water (8.6 bar or 88 meters)
Displacement/Stroke
1.23 gallon (4.66 liters)
Max Operating Pressure
125 psi (8.6 bar)
Shipping Weight
3″ Cast Iron: 478 lbs. (217 kg)
4″ Cast Iron: 530 lbs. (240 kg)

Click here for W15 Wastewater Pump Data Sheet.
