Air Relief Valve – Top-Flo® from Top Line

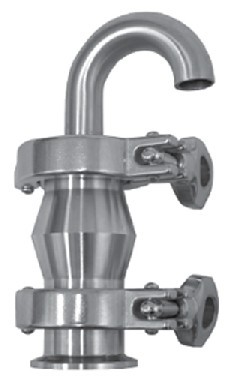

Top-Flo® Air Relief Valve TL60ARV is used primarily when removal of air from a line without loss of product is a concern. The design of the Top-Flo® Air Relief Valve TL60ARV is simple: a ferrule, a housing with a plastic ball, and a vent pipe all connected using 2 standard heavy duty clamps. This design will not let air enter the line or container under negative pressure

Top-Flo® Air Relief Valve TL60ARV is double seated. The lightweight ball is freely moving and depending on pressure conditions will close against the upper or lower seat. This Top-Flo® Air Relief Valve TL60ARV is not designed for use in operation with liquids having less than 1.0 specific gravity.

The Top-Flo® Air Relief Valve TL60ARV can be mounted on the top of a pipeline or container to bleed a pipeline where an air pocket may have formed during operation. Bleeding a pipe on the suction side of a pump will be automatic. Air binding will be prevented. These Top-Flo® Air Relief Valves TL60ARV are found mounted on the top of the inlet pipe in front of the pump.

Top-Flo® is a Registered Trademark of Top Line Process Equipment Company.

Advantages:

The valve can be mounted on the top of a pipeline or container to bleed a pipeline where an air pocket may have formed during operation.

Bleeding a pipe on the suction side of a pump will be automatic. Air binding will be prevented. These valves are found mounted on the top of the inlet pipe in front of the pump.

Ordering Information:

Steel grade: Stainless steel, AISI 316L
Ball: Polypropylene
Finish: Polished to 32Ra

Click here for TL60ARV Air Relief Valve Detailed Specifications
