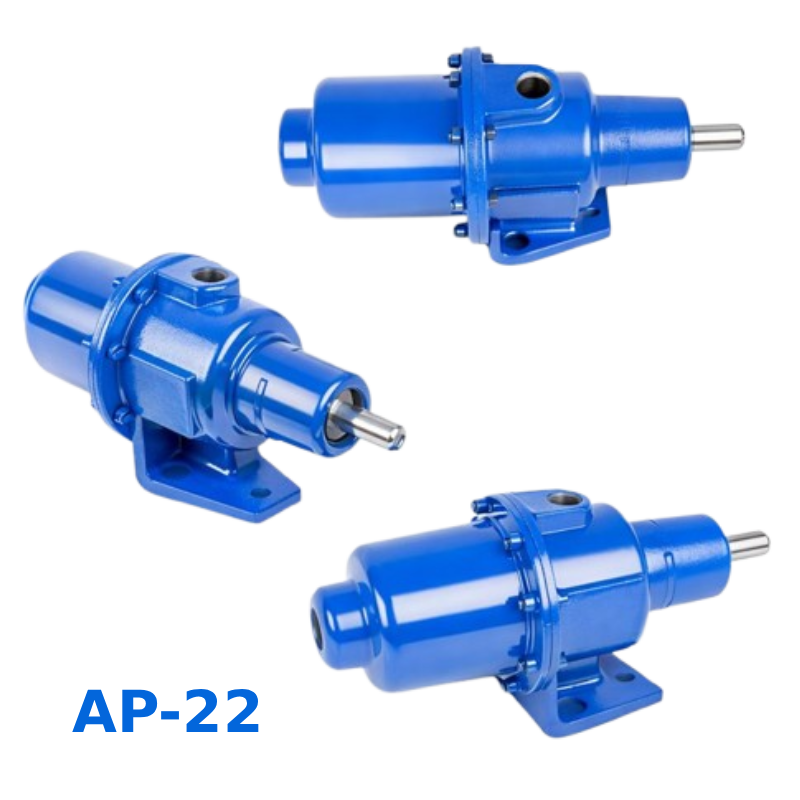

AP-22 Series Progressive Cavity Wobble Stator Pump

AP-22 Series Progressive Cavity Wobble Stator Pump

The AP-22 Series Progressive Cavity Wobble Stator Pump from offers the best value available on the pump market for a progressive cavity pump for flows up to 4.9 GPM and pressures up to 100 psi. The simple design of the wobble stator and just one universal joint give you the inherent advantages of a progressive cavity pump of low pulsation and shear, solids handling and viscous liquids at an affordable price.

The Long-Coupled and Close-Coupled Version is available in either Cast Iron or 316 Stainless Steel with standard Buna Nitrile Stator with options in Viton and EPDM and Stainless Internals with a hard-chrome plated rotor for long service life. In addition, the pump is available with a standard mechanical seal or can be upgraded to a hard-face mechanical seal for abrasion resistance.

The AP-22 Series is offered in a Long-Coupled design for mounting on a baseplate with a standard motor. All pumps are offered “off the shelf” from our inventory for immediate shipment.

Technical Data

  • FLOW RATE – 0 – 4.9 GPM
  • PRESSURE – 0 – 100 PSI
  • SEAL OPTIONS – Standard Mech. Seal
  • BASE OPTIONS – Steel or Stainless Steel
  • INLET/OUTLET – 3/4″ – 3/4″
  • ROTORS – Stainless Steel Chrome-Plated
  • STATORS – Buna, Viton┬«, EPDM
  • MOTOR OPTIONS – 1/2, 3/4, 1, 1.5, and 2 HP

Features

  • Compact Design
  • Solids Handling
  • Gear Reduction Options
  • Direct Motor Speeds
  • Low Shear
  • Low Cost

Click here for AP-22 Progressive Cavity Wobble Stator Pump Brochure
