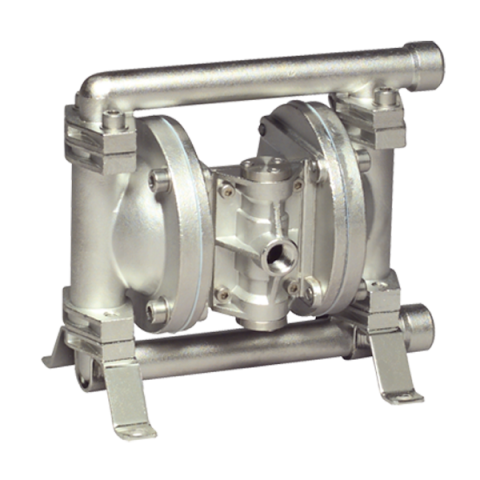

E02 Sandpiper AODD Standard Duty Metallic Pump

Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

Specifications

Port Size
1/4″ BSP Parallel
Capacity
0 to 4.75 gpm (18 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
1/16″ (1 mm)
Heads Up To
125 psi or 298 ft. of water (8.6 bar or 88 meters)
Displacement/Stroke
.048 gallons (.015 liters)
Max Operating Pressure
125 psi (8.6 bar)
Shipping Weight
Stainless Steel: 8.82 lbs. (4.0 kg)

Click here for E02 Standard Duty Pump Data Sheet.
