Hydra-Tech HT200DD/DV Diesel Driven Power Unit

Hydra-Tech HT200DD/DV Diesel Driven Power Unit

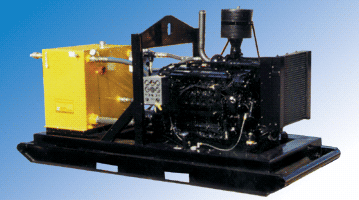

The Hydra-Tech HT200DD/DV 200 horsepower hydraulic power unit features a Deutz liquid cooled diesel engine, fixed or variable displacement hydraulic pump, engine mounted oil cooler and built-in fuel tank. It is designed to power our larger submersible pumps and other hydraulic equipment requiring flows up to 90GPM.

200 HP Liquid-Cooled Deutz Diesel Power Unit. Available With Either A Gear Type Hydraulic Pump (DD) Or Pressure Compensated Piston Hydraulic Pump (DV). Excellent Unit For Running Our Largest Pumps.

Power:

Deutz 200 HP Liquid-Cooled Diesel

Hydraulic Pump:

HT200DD: Gear Type HT200DV: Piston Type

Maximum Flow:

90 GPM (341 LPM)

Maximum Pressure:

2500 PSI (170 Bar)

Weight:

4100 Lbs. (1857 Kg) (skid)

Hose Ports:

1 1/2 Inch NPT

Fuel Capacity:
89 US Gal. (337 L)

HT200DD/DV Specifications
