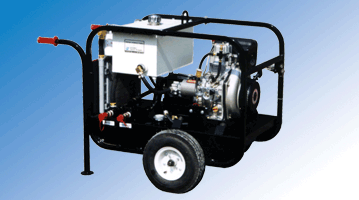

Hydra-Tech HT7DXR Portable Diesel Power Unit

Hydra-Tech HT7DXR Portable Diesel Power Unit

The Hydra-Tech HT7DXR portable diesel powered power unit features an extended run fuel tank, extra oil cooling and easy handling. Great for continuous duty applications powering our pumps or other hydraulic equipment.

This Compact Diesel Hydraulic Power Unit is Just Right for Jobs Requiring Continuous Operation while Driving Pumps such as Our S310 or S2T-2. It Features a Proven Yanmar Air-Cooled Diesel.


Yanmar L.70EE Diesel

Hydraulic Pump:

Gear Type

Maximum Flow:

4.5 GPM (17 LPM)

Maximum Pressure:

1800 PSI (122 Bar)


380 Lbs. (172 Kg)

Hose Ports:

1/2 Inch NPT
Fuel Capacity:
 15 US Gal. (57 L)

HT7DXR Specifications
