Hydra-Tech HTD6D Diesel Driven Power Unit

Hydra-Tech HTD6D Diesel Driven Power Unit

The Hydra-Tech HTD6D portable diesel power pack is ideal for driving our 2″ pumps and slim-line borehole pump. It also can provide hydraulic power to run many other hydraulic tools . Two modelsare available with flows of 3 GPM @ 2500 PSI or 4.5 GPM @ 1800 PSI.

  • Compact
  • Lightweight Diesel Hydraulic Power Unit
  • Yanmar Air-Cooled Diesel

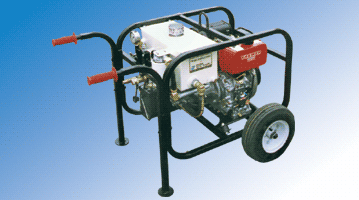

  • Shown With Optional Wheel Kit

Power:

Yanmar 6 HP Air-Cooled Diesel, Recoil Start

Hydraulic Pump:

Gear

Maximum Flow:

3 GPM (11 LPM) @ 2500 PSI (170 Bar) Or 4.5 GPM (17 LPM) @ 1800 PSI (122 Bar)

Maximum Pressure:

See above

Weight:

150 Lbs (68 Kg)

Hose Ports:

1/2 Inch NPT

Fuel Capacity:
.95 US Gal. (3.6 L)

HTD6 Specifications
