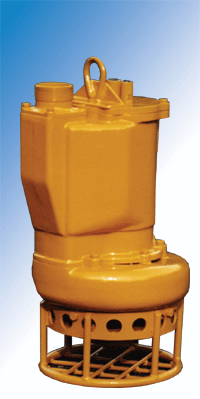

Hydra-Tech S3CSL 3″ Hydraulic Submersible Sand/Slurry Pump

The S3CSL – 3″ Hydraulic Submersible Sand/Slurry Pump with Agitator is designed to use in applications requiring settled solids to be put into suspension and pumped with the discharge water. Primary applications include de-silting ponds, lakes and streams. Other jobs may include filling sand bags to prevent beach erosion, tank and digester cleaning or pumping residue from rail tank cars or barges.

Quick Specs:

  • Discharge Size: 3 Inch
  • Solids Handling: 1 1/2 Inch (38mm)
  • Maximum Flow: 460 GPM (1740 LPM)
  • Maximum Head: 85 Feet (26 M)
  • Hydraulic Input: 10 GPM (38 LPM) Max.
  • Hydraulic Pressure: 3000 PSI (204 Bar) Max.
  • Weight: 231 Lbs. (105 Kg)

Features:

  • Hardened Alloy Wear Parts
  • Built-in Agitator for stirring up solids
  • Oil Lubricated Seals (can run dry)
  • Variable Speed hydraulic drive
  • Small Size allows pump to fit through a 17 inch opening
  • Safe Hydraulic Drive can be used where electric power is hazardous or impractical
  • Dependable gear type hydraulic motor
  • Operates with our HT10 to HT20 power units or other hydraulic power sources capable of flows to 10 GPM
Hydra-Tech S3CSL 3" Hydraulic Submersible Sand/Slurry Pump
WEIGHT: 231 lbs. (105 kg)
HEIGHT: 30 1/4" (77cm)
WIDTH (@ widest point): 16 1/4" (41cm)
DISCHARGE: 3" NPT
SOLIDS HANDLING: 1 1/2" (38 mm)
HOSE PORTS: 1/2" and 3/4" NPT (F)
VOLUTE*: Hardened Ductile Iron
IMPELLER: High Chrome Alloy
WEAR PLATE: High Chrome Alloy
AGITATOR: High Chrome Alloy
SHAFT: 304 Stainless Steel
SHAFT SEALS: (upper) Carbon/Ceramic; (Lower) Silicon Carbide
HYDRAULIC OIL: 214-320 s.s.u. @ 100°F (64°C)
INPUT FLOW: Max 10 GPM (38 LPM)
OPERATING PRESSURE: Max 3000 PSI (204 Bar)
POWER SOURCE: Any Open Center Hydraulic System
* Optional NI-Hard volute available for highly abrasive applications
