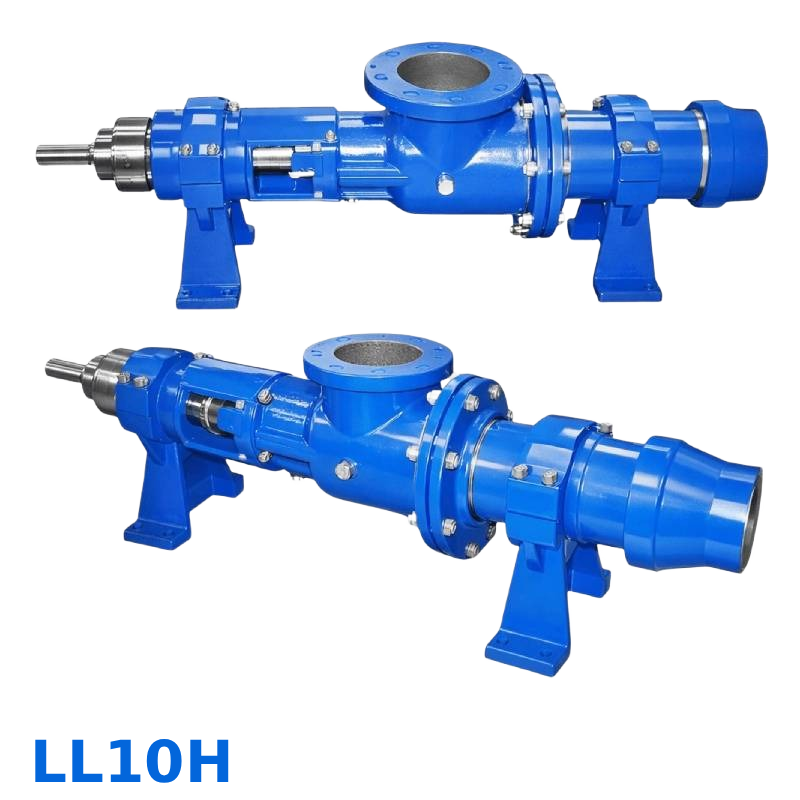

LL10 Progressive Cavity Pump

The LL10 Progressive Cavity Pump is sized for pumping thickened flow mediums such as latex-based fluids and thickened coatings such as plaster or grout. The LL10 Flow rate of (18.8 gallons/100 revolutions) from 15 up to 140 GPM and represents one of our most popular heavy duty models of Progressive Cavity Slurry Pumps.

The LL10 unit is a low-cost, maintenance free, dependable drop-in replacement pump for other popular “L-Frame” slurry-pumps such as *Moyno® L series, *Tarby® Century 3 Series and *Continental® CL Series® and the replacement parts are dimensionally interchangeable with the mentioned OEM Brands.

The LL10 is a standard flanged pump design manufactured with high strength cast iron or 316 stainless steel pump casings and designed in 1, 2, and 3 stages for 75, 150 or 225 psi discharge pressures with a simple hardened pinned joint drive assembly. The LL10 Rotors are typically hardened tool steel or 316 stainless steel with a hard chrome plating for long life in abrasive pumping applications.

All other wetted parts are either carbon steel or 316 stainless steel. Stators are available in many elastomer materials such as buna, natural rubber, epdm and viton® depending upon the thickened coatings or flow mediums you with pumped. The standard slurry-pump gland seal design is a set of gland packing with a Lantern Ring and flush connectors. Slurry Pump mechanical seal options are readily available

Technical Data

  • FLOW RATE – 22 – 140 GPM
  • PRESSURE – 0 – 225 PSI
  • SEAL OPTIONS – Packing & Mech Seal
  • BASE OPTIONS – Carbon and Stainless Steel
  • INLET/OUTLET – 6″ / 5″
  • ROTORS – Tool and Stainless Steel, Chrome Plated
  • STATORS – Buna, Rubber, Viton®, EPDM
  • MOTOR OPTIONS – 5, 7.5, 10 and 15 HP
