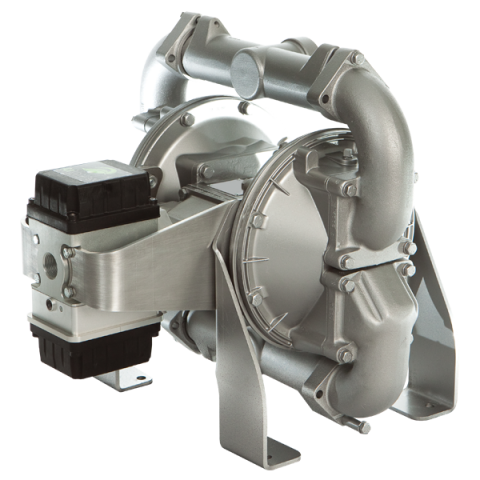

RHDF2 Sandpiper AODD High Efficiency Metallic Pump

AirVantage is an innovative technology for Air Operated Double Diaphragm pumps that significantly reduces air consumption over conventional AODD pumps.

  • Smart Learning System
    Modulates pump performance to optimize energy usage and match changes in system demand.
  • Adaptable Efficiency
    Automatically adapts to changing process conditions by constantly managing the amount of air that is used to drive the pump.
  • Completely Self Sustaining
    Self-contained 12v power generation module, only needs compressed air. No need for batteries or hard-wiring.

Specifications

Port Size
2″ NPT
Capacity
0 to 165 gpm (624 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to 2″ (50 mm)
Heads Up To
125 psi or 289 ft. of water (8.6 bar or 88 meters)
Displacement/Stroke
.48 gallons (1.81 liters)
Max Operating Pressure
100 psi (7 bar)
Shipping Weight
Aluminum: 107 lbs. (49 kg)
Cast Iron: 150 lbs. (68 kg)
316 Stainless Steel: 157 lbs. (71 kg)

Click here for RHDF2 High Efficiency Pump Data Sheet.
