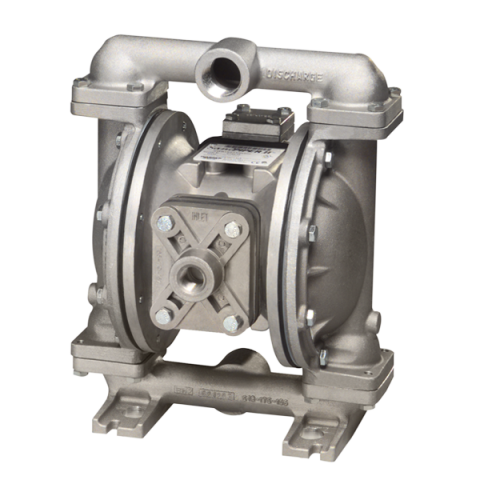

U1F Sandpiper AODD UL Compliant Metallic Pump

UL (Underwriters Laboratory) Compliant Pumps are designed to meet UL79 standards for diaphragm pumps handling flammable liquids. All Aluminum construction with approved Nitrile or Virgin PTFE UL elastomers. Fully groundable to prevent static discharge.

Specifications

Port Size
1” NPT (Internal)
1” BSPT (Tapered)
Capacity
0 to 45 gpm (170 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .25″ (6 mm)
Heads Up To
100 psi or 231 ft. of water (7 bar or 70 meters)
Displacement/Stroke
.11 gallons (.42 liters)
Max Operating Pressure
125 psi (8.6 bar)
Shipping Weight
Aluminum: 53 lbs. (24 kg)

Click here for U1F Metallic Pump Data Sheet.
