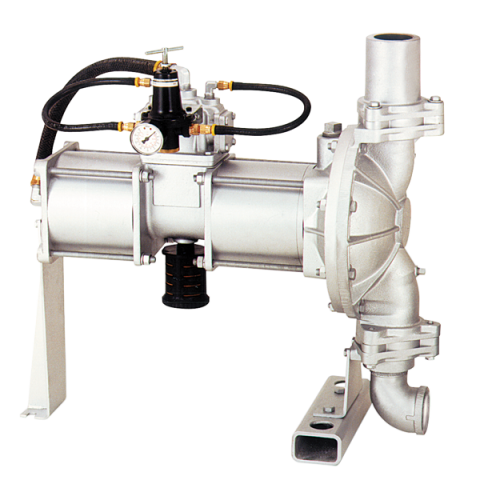

EH2-M Sandpiper High Pressure Metallic AOD Pump

Air-Powered Single Diaphragm High Pressure Metallic Pumps deliver discharge pressure twice the inlet pressure, up to 250 PSI (17.2 BAR). Designed for filter press feed and applications requiring higher discharge pressures.

Available in Aluminum, Cast Iron and Stainless Steel with various elastomer options.

Specifications

Port Size: 2″ NPT

Capacity: 0 to 62 gpm (235 lpm)

Air Distribution Valve: No-lube, no-stall design

Solids-Handling: Up to 1/4″ (6.3 mm)

Heads Up To: 250 psi or 577 ft. of water (17 bar or 176 meters)

Displacement/Stroke: 62 gallons (235 liters)

Max Operating Pressure: 250 psi (17 bar)

Shipping Weight: Cast Iron: 172 lbs. (78 kg.) 316 Stainless Steel: 176 lbs. (80 kg.)
