FLUX F 458 Motor

flux f 458 motor

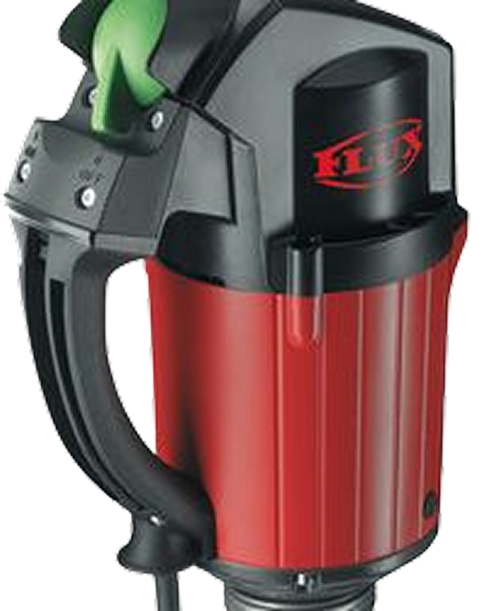

The F 458 is a compact with an extremely durable, double wall aluminum housing, thus operating very quietly. The motor is completely enclosed with a special corrosion-resistant paint, therefore, more than suitable for use in extreme conditions, even in areas with corrosive vapor.

The F 458 EL has easy to use electronic speed adjustment to regulate the pump flow rate. The F 458-1 is identical to the F 458, but has 700W capacity for greater performance. This motor is used when a higher capacity is required or when slightly viscous liquids with a high density need to be pumped.

  • Robust aluminum housing
  • Corrosion-resistant painting
  • Very low noise level
  • Enclosed motor to prevent corrosion from fumes
  • Available models:
    • F 458-1: 700 W
    • F 458 EL: with variable speed adjustment

Technical Data

  • Enclosure: IP 55
  • Ventilation: external
  • Voltage: 12 V, 24 V, 110 – 120 V, 230 V, 240 V
  • Frequency: 50 – 60 Hz
  • Capacity: 460/700 W
  • Variable Speed: Optional
  • Weight: 11.2/13.0 lbs (5.1/5.9 kg)
  • Integral no-volt release: Optional
