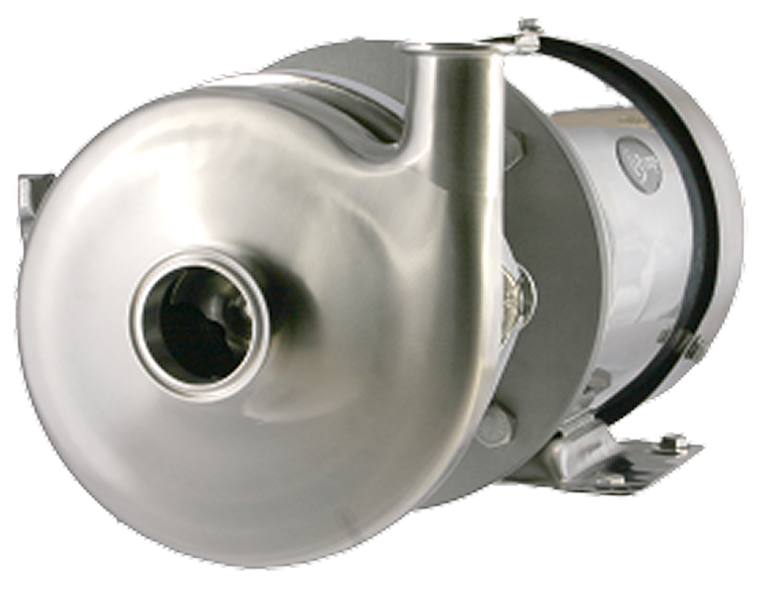

QC / QC+ Series Sanitary Pumps from Q-Pumps

The QC + series is ideal for sanitary and non-sanitary applications, perfect for the food, beverage and agrochemical industries.

They can handle flows of up to 1200 GPM and pressure loads of up to 270 feet. It has the 3-A certification.

Features

  • Pressures to 117 psi (8 bar).
  • Capacity: 1,200 GPM (4,542 LPM).
  • Temperature: 120C / 248F
  • Open impeller
  • Scroll casing with suction in the center
  • Sanitary finish according to standards 3-A certified 1004
  • Connections: Clamp (standard), Flange, NPT, Weldable, Bevel Seat, DIN, SMS
  • Support set and legs in stainless steel
  • Manufactured in NEMA (American) and IEC (European) standards
  • They can work in both 60 Hz and 50 Hz
  • Stainless steel adapter
  • All the parts in contact with the product are made of T316L stainless steel

Q-Pumps QC / QC+ Series Sanitary Pumps Borchure
