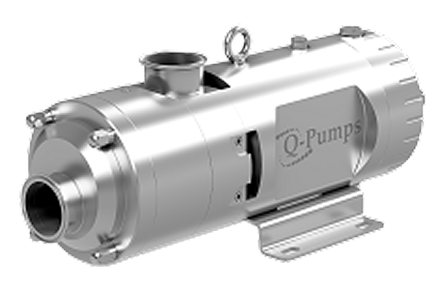

QTS Series Twin Screw Pumps from Q-Pumps

The QTS series is a twin screw pump, 100% sanitary and ideal as a process pump and CIP, which reduces costs and maintenance times. Available with rectangular inlet. Ideal for products with high air or gas content. Certifications: 3-A, FDA and EHEDG


  • Pressure: 362 psi (25 bar).
  • Capacity: 850 GPM (3,218 LPM).
  • Temperature: 120C / 248F
  • Manufactured 100% in stainless steel, wet parts in SS 316L
  • Constant flow, free of pulsations
  • 100% CIP* at high speeds
  • There is no contact between rotor / rotor / housing when working at high pressures
  • Speed of up to 3,500 rpm (depends on the viscosity of the product)
  • Ideal as a process and CIP pump* with the same equipment reducing costs
  • Perfect for handling constant flows and product measurements
  • Large suction capacity that eliminates low NPSH problems
  • Handling of products with low and high viscosities (from 1 to 1,000,000 cP)
  • Ideal for abrasive products
  • 100% drainable
  • Bidirectional: It is possible to recover the product from the line due to being reversible
  • Self-priming (high degree of suction)
  • Narrow tolerances for vacuum capacity
  • Certified by EHEDG (nº UT 033018) and 3-A (nº 1805)
  • Options available in other materials such as Hastelloy C-276 **

Q-Pumps QTS Series Pumps Brochure
